RATTMMOTOR K11-130mm CNC Router Table Rotary Milling Machine Rotational Axis A 4th Axis, 130mm 3 Jaw Chuck Dividing Head Reducing Ratio 4:1, Nema34 Stepper Motor
4.4 (31 items)
Limited Time SaleUntil the end
10
55
16
$234.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $390.00
Product details
| Management number | 216492359 | Release Date | 2026/04/19 | List Price | $156.00 | Model Number | 216492359 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

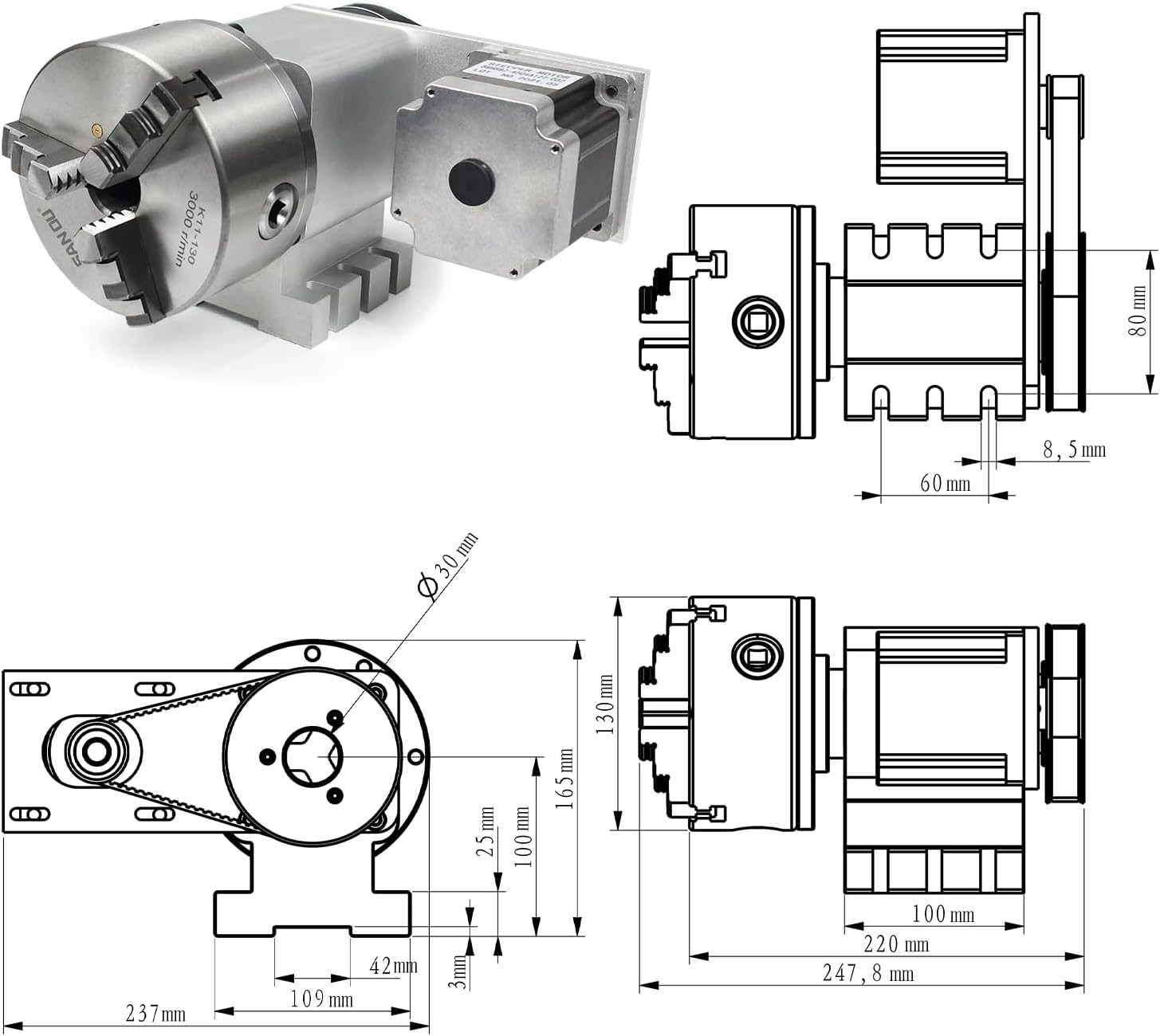

- ✅【CNC 4th axis】Product Model: 5M-H100-4-130A(B); Chuck type: K11-130mm 3-jaw centring chuck; Centre height: 100MM; Total height: 165MM; Through-hole diameter: 30MM; Angle: 0.45 degree/step; Deceleration ratio: 4:1 (synchronous belt deceleration mode); Stepping motor: 2-phase 4-wire 86 stepping motor (current 4.5A); Synchronous belt: 5M-450 (width 15MM).
- ✅【K11-130mm three-jaw centring chucks】Maximum input torque: 100N.m; Limit speed: 3000r/min; Maximum static clamping force: 17KN; Positive jaw clamp: 3-40mm; ; Positive jaw support: 40-130mm; Reverse Jaw Clamp: 40-120mm; Mounting screw: M8.
- ✅【Nema 34 stepper motor】Step angle: 1.8°±5; Number of phases: 2; Current: 4.5A; Holding torque 4.5N.m; Inductance: 2.8°±10%Ω; Insulation class: B; Resistance: 0.32 0.32°±10%Ω; Insulation resistance: 400MOhm ( 500VDC) .
- ✅【Features】High tensile strength, local secondary hardening, surface fine grinding, rust and corrosion prevention; Dust-proof design, streamlined structure, easy maintenance; Use a variety of machinery and equipment, high clamping force, repeatable centring accuracy.
- ✅【How to wiring the 4-lead wire】 Stepper motor's Red wire connects to driver's A+ port; Stepper motor's GREEN wire connects to driver's A- port; Stepper motor's YELLOW wire connect to driver's B+ port; Stepper motor's BLUE wire connect to driver's B- port.
| Amperage | 4.5 Amps |
|---|---|
| Base Type | Fixed |
| Brand Name | RATTMMOTOR |
| Unit Count | 1.0 Count |
| Item Weight | 14750 Grams |
| Manufacturer | RATTMMOTOR |
| Model Number | K11-130mm |
| Power Source | Corded Electric |
| Material Type | Metal |
| Battery Description | Corded electric |
| Included Components | K11-130mm CNC Router Table Rotary |
| Manufacturer Part Number | K11-130ROTARY-HU |
| Maximum Rotational Speed | 3000 RPM |
